Thermoinsulating sandwich plates for mounting of hidden rail
Easy solution for the facade to be insulated!!!

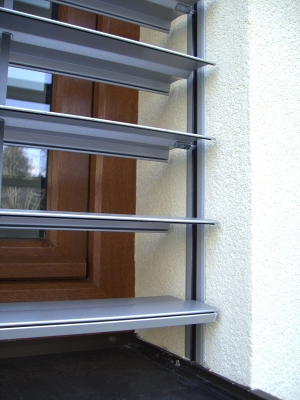

Detail of window with hidden rail in the insulated facade
The external blinds and side guidance rails are installed in to the prepared space after finishing of final varnish on the facade.
- easy and quick mounting of external blinds with hidden rails in insulated dado
- the best thermal, technical and visual solution for external blinds in insulated facade
- plates are made to order
- variable position of the guiding rail in the plate
Material: Sandwich plates consit of 22 mm thick insulating material. There is already inserted mounting profile for hidden rail in the sadwich plate.
Standard dimensions:
Width of plate 0 – 280 mm max. length: 4 m
Thermoinsulating sandwich plates are recommended to be combined with ISO-KASTL – insulated case for external blinds. Enjoy the advantage of using sandwich plates and ISO-KASTL cases. The final perfect aesthetical view of the insulated facade is achieved very easy and quickly.
 Thermoinsulating sandwich plate
|
 Thermoinsulating sandwich plate including hidden guiding rail |
 |

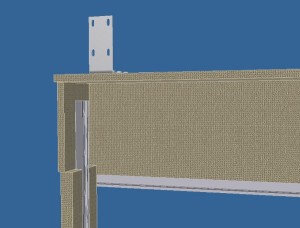

Detail of connection between the ISO-KASTL case and sandwich plate (inside view) |
 |

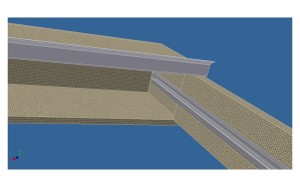

Detail of connection between the ISO-KASTL case and sandwich plate (backward view) |
