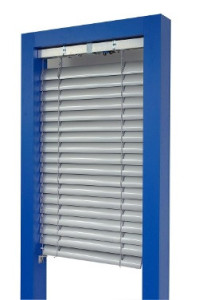

F-80 external blinds with flat slat have both a highly functional and aesthetic design that improves the appearance of façades and at the same time protects the interior from the sun. Thanks to the flat shape of slats, the raised bundle of slats occupies considerably less space and thus has a reduced impact on the window compared to external blinds with slats with consolidated borders.
A strong guiding plastic-coated steel wireensures the safe and fully functional operation of the blind.
The blind is controlled by a crank handle or electric motor drive. Greater convenience can be achieved by connecting to automatic sun/wind controls. We offer the lower part and wire brackets in elox or any colour according to the RAL colour swatch. The upper part is made of zinc-coated plate or aluminium. An aluminium cover plate can be used for covering the upper part and the raised bundle of slats, and is delivered in any colour according to the RAL colour swatch or in elox.
There are 5 standard colour shades of slats; for orders with a surface area above 70 m2 we offer slats in any colour you choose.
NEWS: External blind F-80 with slats without coated edges
(upon a request are available also slats without coated edges in colours: 010B – white, 716B – anthracite grey, 907B – silver – grey, 908B – bronze, that are already available on stock)
Basic technical parameters:
| Maximum width of blind: | 350 cm |
| Maximum height of blind: | 400 cm |
| Maximum width of connected blinds: | 8 bm (electric control) |
| Type of blind | Min. width of blind | Max. surface of blind |
| F-80 operation by crank handle | 40 cm | 9 m2 |
| F-80 operation by motor | 60 cm (52) | 14 m2 |
Connecting blinds:
It is possible to connect more blinds to one control. However, if the motor is placed in the middle of the assembly, there is a maximum of 3 blinds to one control.
The additional rule that there may be at most 5 bearings (revolving mechanisms) on each side of the motor must also be observed.
Leave approx. 2 cm gap between the connected blinds.
Material of blinds:
slats – aluminium, two-sided, colour-adjusted, rolled into a C-shape; width of slats: 80 mm
upper part - 56 x 58 mm of zinc-coated steel plate or extruded aluminium
lower part – extruded aluminium across width of slats
guiding wire – steel, coated with transparent plastics Ø 3 mm with spring and taking-up screw
cover plate – bent 1.5 mm thick aluminium plate
fabric supports and strips – special synthetic fibres
