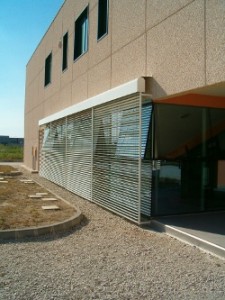

Facade external blinds: C-65F, C-80F, Z-70F, Z-90F
Facade external blinds are an effective and efficient equipment design that thanks to electric control ensures maximum comfort for the user.
Facade external blinds are mounted directly to the building facade and are available either in a C-shape slat with widths of 65 or 80 mm and in a Z-shape slat with slat widths of 70 and 90 mm.
Slats are placed in round guiding rails.
By sealing in guiding parts the silent operation of blinds is enhanced.
Blinds may only be controlled by electric motor. Greater convenience can be achieved by connecting to automatic sun/wind controls.
We offer slats in 19 colours and for orders with surfaces above 70 m2 we offer slats in any colour you choose.
| Maximum width of blind: | 350 cm |
| Maximum height of blind: | 400 cm |
| Maximum width of connected blinds: | 8 bm (electric control) |
Every blind must have two simple guiding rails!
| Type of blind | Min. width of blind | Max. surface of blind |
| C-65F, C-80F, Z-70F, Z-90F, electric control | 60 cm | 11 m2 |
Connecting blinds:
It is possible to connect more blinds to one control. However, if the motor is placed in the middle of the assembly there is a maximum of 3 blinds to one control.
The additional rule that there may be at most 5 bearings (revolving mechanisms) on each side of the motor must also be observed.
Material of blinds:
slats - aluminium, two-sided, colour-adjusted, rolled into a C- or Z-shape; width of slats: 65 – 70 – 80 – 90 mm
upper part – 56 x 58 mm of zinc-coated steel plate or extruded aluminium
lower part – extruded aluminium across width of slats, in elox or any colour according to the RAL colour swatch
guiding parts – Ø 40 mm of extruded aluminium, in elox or any colour according to the RAL colour swatch
cover sheet – extruded aluminium, in elox or any colour according to the RAL colour swatch
fabric supports and strips – special synthetic fibres
