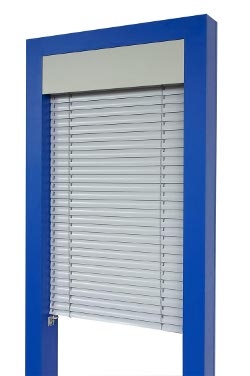

The E-50K external blinds with flat slat (50 mm width) have both a highly functional and aesthetic design that improves the appearance of façades and at the same time protects the interior from the sun. Thanks to the flat shape of slats, the raised bundle of slats occupies considerably less space and thus has a reduced impact on the window compared to external blinds with slats with consolidated borders.
A strong guiding plastic-coated steel wire with diameter 2 mm ensures the safe and fully functional operation of the blind. The blind is controlled by an endless cord or crank handle.
We offer the aluminium upper profile and bottom profile and wire brackets in white or silver colour and in elox as standard. The upper and bottom profile inclusive the wire bracket can be delivered in any colour according to the RAL colour swatch for additional price. An aluminium coveing sheet can be used for covering the upper profile and the raised bundle of slats, and is delivered in any colour according to the RAL colour swatch or in elox.
The colour of slats – we offer 8 standard colour shades.
Basic technical parameters:
| Maximum width of blind: | 350 cm |
| Maximum height of blind: | 300 cm |
| Type of blind | Min. width of blind | Max. area of blind |
| E-50K operation by endless cord | 40 cm | 5 m2 |
| E-50K operation by crank handle | 60 cm (52) | 8 m2 |
Lenghts of endless cords:
1000, 1250, 1500, 1750, 2000, 2250, 2500 mm
Material of blinds:
slats - aluminium, two-sided colour-adjusted, width of slats: 50 mm, thickness of slats: 0,23 mm
upper profile - 40 x 40 mm of extruded aluminium (in white RAL 9016, silver RAL 9006 or elox)
lower profile - extruded aluminium across width of slats (in white RAL 9016, silver RAL 9006 or elox)
guiding wire - steel, coated with transparent plastics Ø 2 mm
cover plate - bent 1,5 mm thick aluminium plate
fabric supports and strips - special synthetic fibres, grey tilt tape, grey lift tape 6 mm
