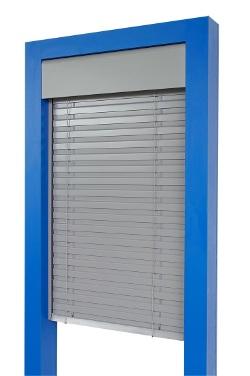

The Z-70 external blind with guiding in guiding rails enables the smooth regulation of light intensity in the interior and at the same time shading up to 85% of the sun’s radiation, and thus preventing the interior overheating. The Z-shape, 70 mm wide slat with rolled sealingensures noise-free operation of the blind, and moreover it is able to darken interiors nearly as much as roller blinds.
The blind is controlled by a crank handle or electric motor. Greater convenience can be achieved by connecting to automatic sun/wind controls. Sealing in guiding parts also contributes to the silent operation of blinds. We offer guiding parts and the lower part either in elox or any colour according to the RAL colour swatch. The upper part is made of zinc-coated plate or aluminium. An aluminium cover plate can be used for covering the upper part and the raised bundle of slats, and is delivered in any colour according to the RAL colour swatch or in elox.
We offer slats in 19 colours and for orders with surfaces above 70 m2 we offer slats in any colour you choose.
The external blinds with guiding in guiding rails are more resistant to strong wind and are less noisy than blinds with wire-guiding.
Basic technical parameters:
Maximum width of blind: | 400 cm |
Maximum height of blind | 400 cm |
Maximum width of connected blinds: | 8 bm |
Type of blind | Min. width of blind | Max. surface of blind |
Z-70 operation by crank handle | 40 cm | 9 m2 |
Z-70 operation by motor | 60 cm (55) | 14 m2 |
Connecting blinds:
It is possible to connect more blinds to one control. However, if the motor is placed in the middle of the assembly, there is a maximum of 3 blinds to one control.
The additional rule that there may be at most 5 bearings (revolving mechanisms) on each side of the motor must also be observed.
slats – aluminium, two-sided, colour-adjusted, rolled into a Z-shape with rolled sealing profile; width of slats: 70 mm
upper part - 56 x 58 mm of zinc-coated steel plate or extruded aluminium
lower part – extruded aluminium across width of slats
guiding parts – 20 x 20 mm of extruded aluminium
cover plate – bent 1.5 mm or 2 mm thick aluminium plate
fabric supports and strips – special synthetic fibres, grey or black
